Brother GTX Pro Direct to Garment Printer Specifications

The Brother GTX Pro comes with technical sophistication and ease of use that you would expect from the next generation of garment printers plus more. With GTX Pro print the most complicated and colour-intense designs (including photographic imagery) faster and with more eye-popping resolution faster than ever before.

For individuals located in the EU or EEA, click here.

Any personal information you provide will only be used for the purpose of your enquiry and will be handled in accordance with our Privacy Policy.

Specifications

Printing Method
Direct inkjet garment printer
Machine Size

GTXpro Pouch: 55.1"(W) x 51.1"(D) x 21.6"(H) (1400mm x 1300mm x 550mm)

GTXpro Bulk: 1780mm x 1300mm x 1210mm (with supplied stand)

Brother GTX-pro dimensions
Machine Weight (Including platen)

GTXpro Pouch: Approx. 128kg

GTXpro Bulk: Appox. 165kg (Not including stand)

Platen Sizes

Maximum print size is 16" x 21" / 40.6cm x 53.3cm

Adult Platen
14” x 16” / 35.6cm x 40.6cm
Youth Platen
10” x 12” / 25.4cm x 30.5cm
Baby Platen
7” x 8” / 17.8cm x 20.3cm
Oversized Platen
16” x 18” / 40.6cm x 45.7cm
Sleeve Platen
4.25” x 15” / 10.8cm x 38.1cm
For a list of all available platen sizes, contact a Brother DTG Specialist.
Ink Type
Water based pigment ink
Ink-Head Type

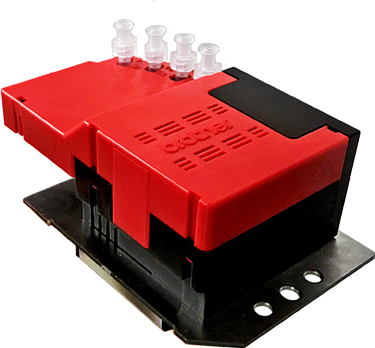

On demand piezo head gtx pro print head
Number of Ink-Heads
2 print heads / 8 ink channels
Print Resolution
1200 dpi x 1200 dpi
Print Mode
Single or double for CMYK. Underbase and highlight for white.
Environment
Data Output
Printer driver (USB, File output)
Power Supply
AC 100V-240V, 50/60Hz ± 1Hz
Power Consumption
0.8A (average) (Reference: 0.3A - during circulation)
Ink Cure
Heat press machine can be used at 356°F (180°C) and 35 seconds duration. For higher volume production, a conveyor oven is recommended to be used at 320° (160°) for three and a half minutes. Time and temperature may vary depending on which manufacturer's dryer is used.
Pre-Treatment
Before printing, apply pre-treatment using either a manual or automatic device and then dry garment using a heat-press, being sure to follow all manufacturer's instructions. Pre-treatment is necessary for white ink.

Software

OS
Windows® 7(32 bit/64 bit), Windows 8.1(32 bit/64 bit) , Windows 10(32 bit/64 bit), Mac OS® X v10.10.x
Interface
USB2.0, LAN(10 BASE-T, 100 BASE-TX), USB Flash Memory(Under 32GB, FAT32 format)
Driver Operating Conditions
2GHz CPU (minimum recommendation) 4GB RAM
Display Resolution
XGA (1024×768) (minimum recommendation)
Recommended Applications
CorelDRAW® X6/X7, Adobe® Photoshop CS6/CC, Adobe® Adobe® Photoshop CC2020/CC2019、Adobe ® Illustrator CC2020/CC2019、CorelDRAW ® 2018/2019 (for Windows)
